Stigma-Rotary Nuclear Green Amen Tattoo Machine Body Only

Stigma-Rotary Nuclear Green Amen Tattoo Machine Body Only

MACH-306

$524.99 $524.99 Pro Price
$524.99 $524.99 $262.50 Pro Price
Sale Out of Stock

Please Note: Discounts will not be accepted on this item.
View full details

Description

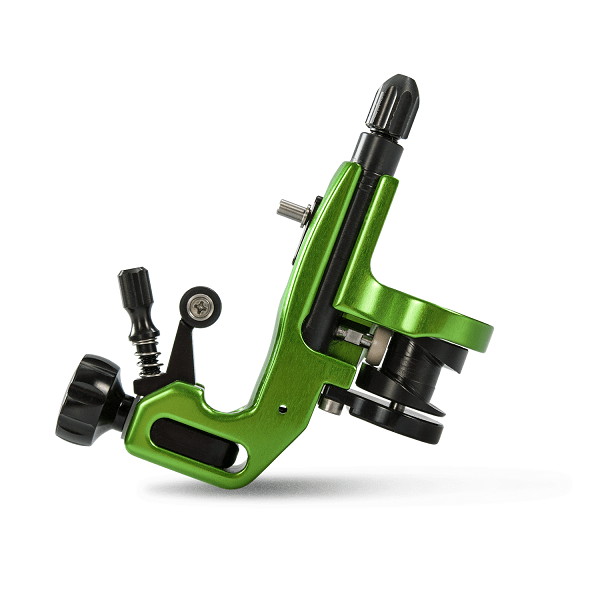

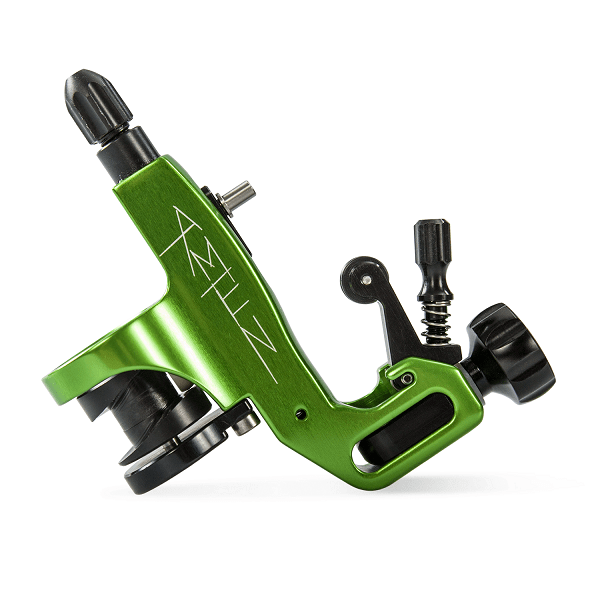

Nuclear Green Amen Tattoo Machine Body Only by Stigma-Rotary

The Amen tattoo machine designed by Stigma-Rotary gives the tattoo artist more customization and control than before. With a new hex drive system, artists can control the cycle of the motor by changing out the strokers. The Amen machine comes with three color-coded stroker types: black, gray, and silver. With the different strokers, the artist can choose to have the Amen function like a standard rotary or faster than a standard rotary. The included new hex spinner is easily changed with the provided allen key. The stroke-length changes automatically in combination with the give adjustment and speed.

Specifications:

  • Three color-coded stroker types included with details below
  • New hex drive system
  • Super Lube (synthetic grease), allen key, & new hex-spinner included
  • Compatible with existing MotorPlugs
  • Also available in black, purple, red, and orange
*Please Note: Coupons will not be accepted with this machine.

Stroker Types:
  • Black Stroker (Liner): 3.8mm Stroke Length - needle spends 35% out of the tube (in the skin) vs. 65% inside the tube.
  • Gray Stroker (All-Purpose): 3.5mm Stroke Length - needle spends 45% out of the tube (in the skin) vs. 55% inside the tube.
  • Silver Stroker (Shader): 3.0mm Stroke Length - needle spends 50% out of the tube (in the skin) vs. 50% inside the tube.

New Hex Drive System:

On the AMEN, the stroke-length (hub) changes automatically in combination with the give adjustment and with the speed (volts):

  • Increase the speed (by volts) – longer strokes
  • Decrease the speed (by volts) – shorter strokes
  • Adjusted for lining – shorter but harder strokes
  • Adjusted for shading – longer but softer strokes

Necessary Hardware:

A MotorPlug must be purchased with your machine, as this listing is for the body only. All MotorPlugs come pre-installed with the medium (3.5mm) stroke excenter. For the Amen machine, the stroke excenter must be replaced with the hex spinner included with the machine.

MotorPlug Options:

  • 4.5w MotorPlug: Lighter, strong, and with an RCA connection only
  • 10w MotorPlug: More torque, ease of use, and with both RCA and clip-cord connections

Hex Spinner:

Relevant Information:

You can read more about the Amen tattoo machine, its interchangeable strokers, Stigma-Rotary® and its family of products in our new article, Stigma Rotary Amen Tattoo Machines. If you'd just like to view the three stroker demo videos included in the article, you can watch them on our YouTube channel via the links below:

Stigma Rotary Amen Machine Stroker Cycle Side-by-Side Comparison
Stigma Rotary Amen Tattoo Machine Silver Shader Stroker Demo Video

Stigma Rotary Amen Tattoo Machine Black Liner Stroker Demo Video

Product Weight: 0.4246 lb
