Hatchback Irons Spider Liner Coil Tattoo Machine

SKU: MACH-065

Pro Price $300.00

Single Item
Low Stock
6 available
View full details

Description

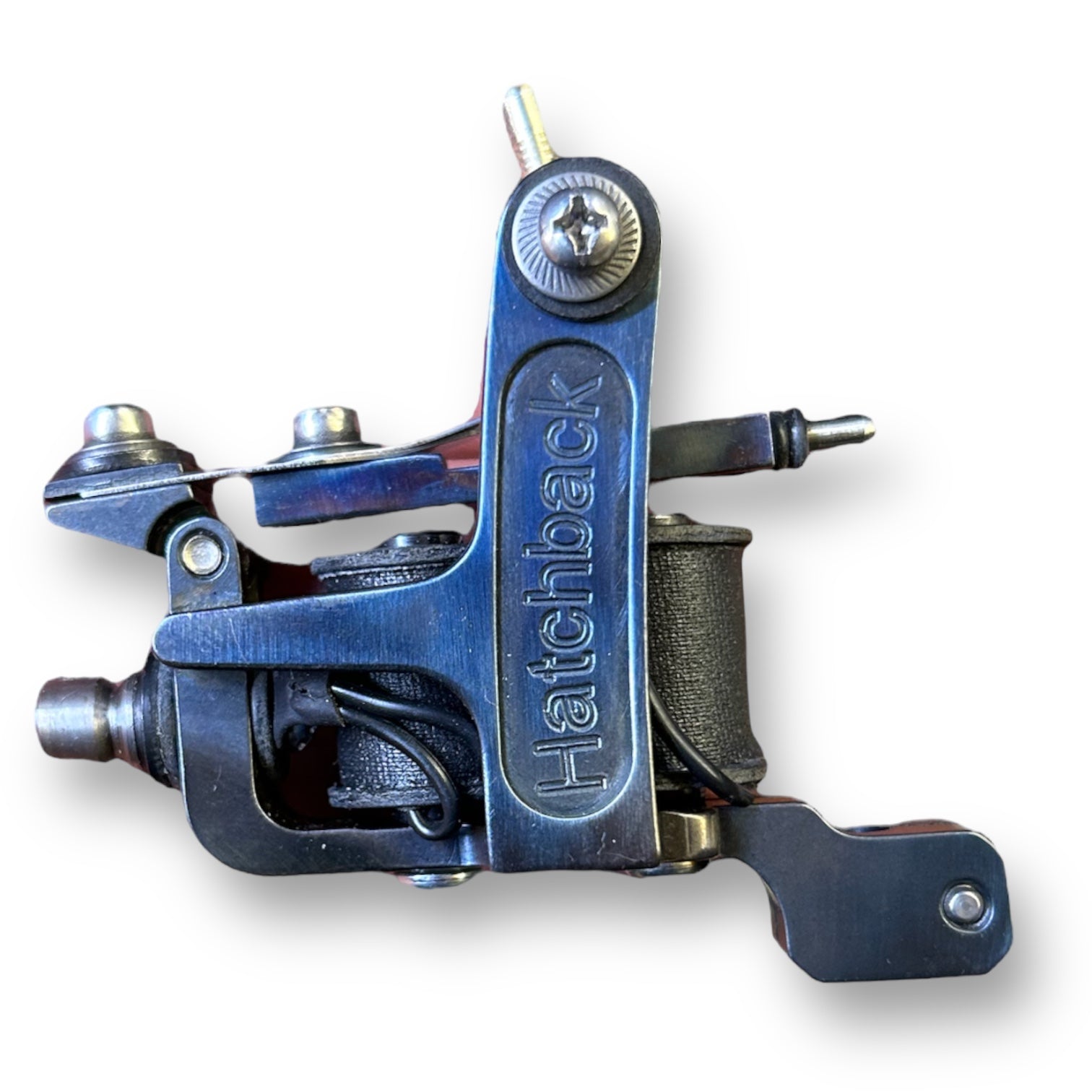

Hatchback Irons Coil Tattoo Machine — Spider Liner

Create bold, crisp linework with the Hatchback Irons Spider Liner coil tattoo machine. This coil machine pushes 5 to 18 round liners and boasts a specialized cut-out armature bar designed specifically for power lining. Traditional, neotraditional, and new school tattoo artists can count on this machine to create super bold linework.

The Hatchback Irons Spider Liner coil tattoo machine features a CNC-machined frame built from one piece of 10/18 steel. It has 18-gauge laser-cut blue steel springs and a silver contact screw.

Specifications:

  • CNC-machined frame; built from one piece of 10/18 steel
  • 1” 8 wrap coils; 24-gauge wire around a 3/8 99.9 pure iron core with 47 capacitor
  • 18-gauge laser-cut blue steel springs; no need for bending
  • Features a silver contact screw
  • Specialized cut-out armature bar
  • Great for power lining
  • Voltage Range: 5.2v–7.5v
  • Pushes 5–18 round liners
  • Available as a shader
Product Weight: 0.55 lb

Size Table

Standard Body Jewelry Measurements

The following webchart is a quick reference guide for standard body jewelry measurements and how to measure basic body jewelry. Please print this webchart to help measure your body jewelry accurately.

Standar Body Jewelry MeasurementsJPG (300 KB)

Visit our PainfulPleasures Infocenter for additional body jewelry information. There, you will find detailed articles on standard body jewelry sizes, how to measure body jewelry, basic body jewelry, and more.

Standard Body Jewelry Threading

Ensure compatibility between standard (non-custom) PainfulPleasures body jewelry parts using the tables below. More information on threading, including custom thread patterns, can be found in our Threading Infocenter article.

Internally threaded jewelry has a threaded post on the top and/or end, which is then inserted into a threaded hole in the barbell shaft.

Internal Thread Patterns by Gauge

Gauge

18g, 16g

14g, 12g

10g–00g

Internal Thread Pattern

0.8mm or 0.9mm

1.2mm

2.0mm


Externally threaded jewelry has a threaded post on the barbell shaft, which is then inserted into a threaded hole in the top and/or end.

External Thread Patterns by Gauge

Gauge

18g, 16g

14g, 12g, 10g

External Thread Pattern

1.2mm

1.6mm
